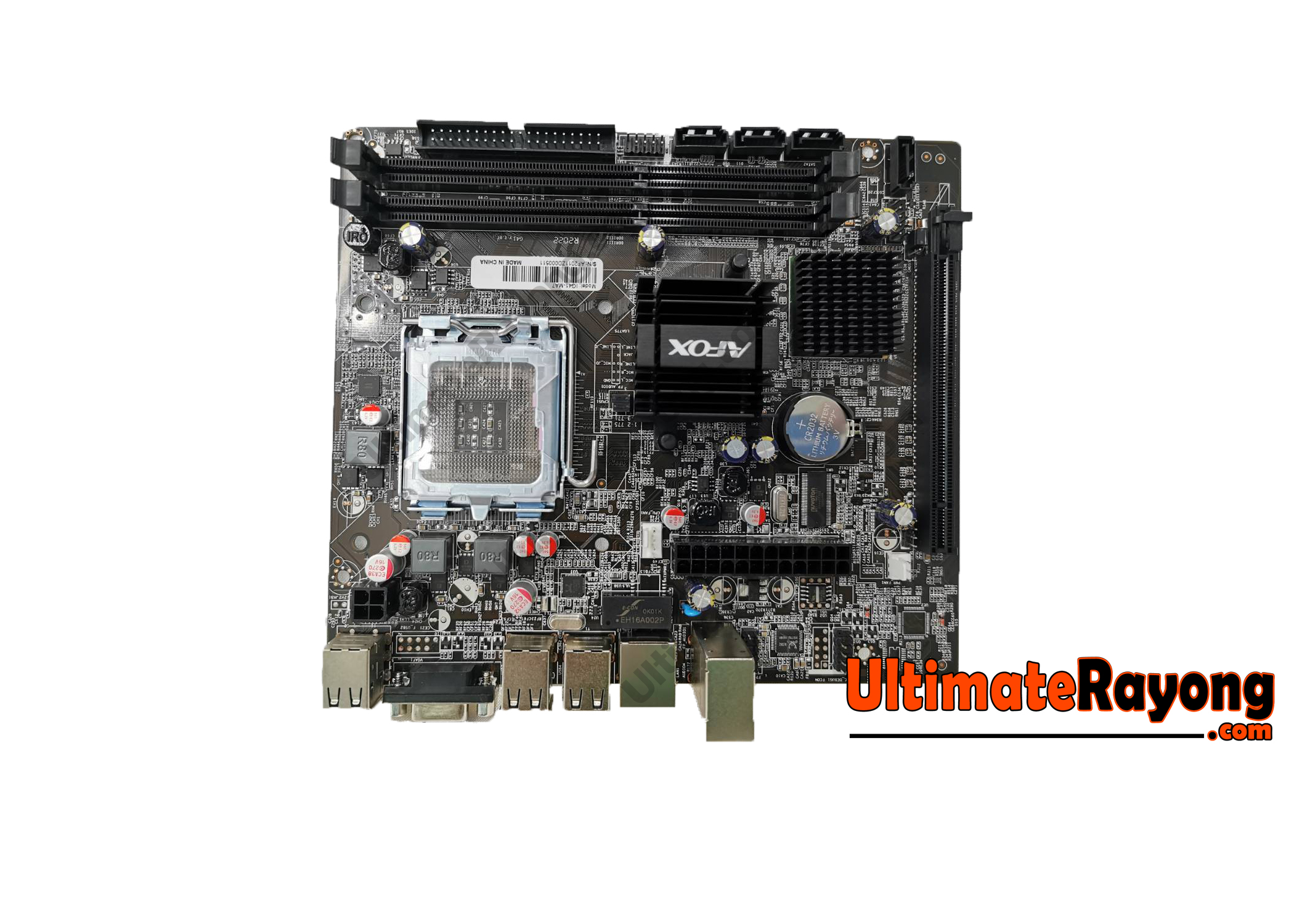

Mainboard Afox IG41-Ma7 Chip G41 LGA775

(775) AFOX IG41-MA7
Brand :AFOX
Model :IG41-MA7
CPU Support :Supports Intel® Core™ 2 Duo / Core™ Duo / Pentium® D / Pentium® 4 / Celeron® D Processors
Socket :775
Chipset :Intel G41
Intel ICH7
Memory Support :2 x Memory Slots
Dual Channel DDR3 800/1066/1333MHz Memory up to 8GB (4GB x 2)
Memory Type :DDR3
Memory Bus :1333 / 1066 / 800 MHz
Memory Slot :2 Slots
Graphics :Integrated Intel® GMA X4500 graphics
Audio :Realtek 662 integrated on board
Expansion Slots :1 x PCI Express x16 slot
Storage :4 x SATA II port
Internal I/O Connectors :
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x F_Audio connector
1 x F_Panel connector
1 x F_Speaker connector
2 x Fan connector
4 x SATA II port
1 x 40-pin IDE Port

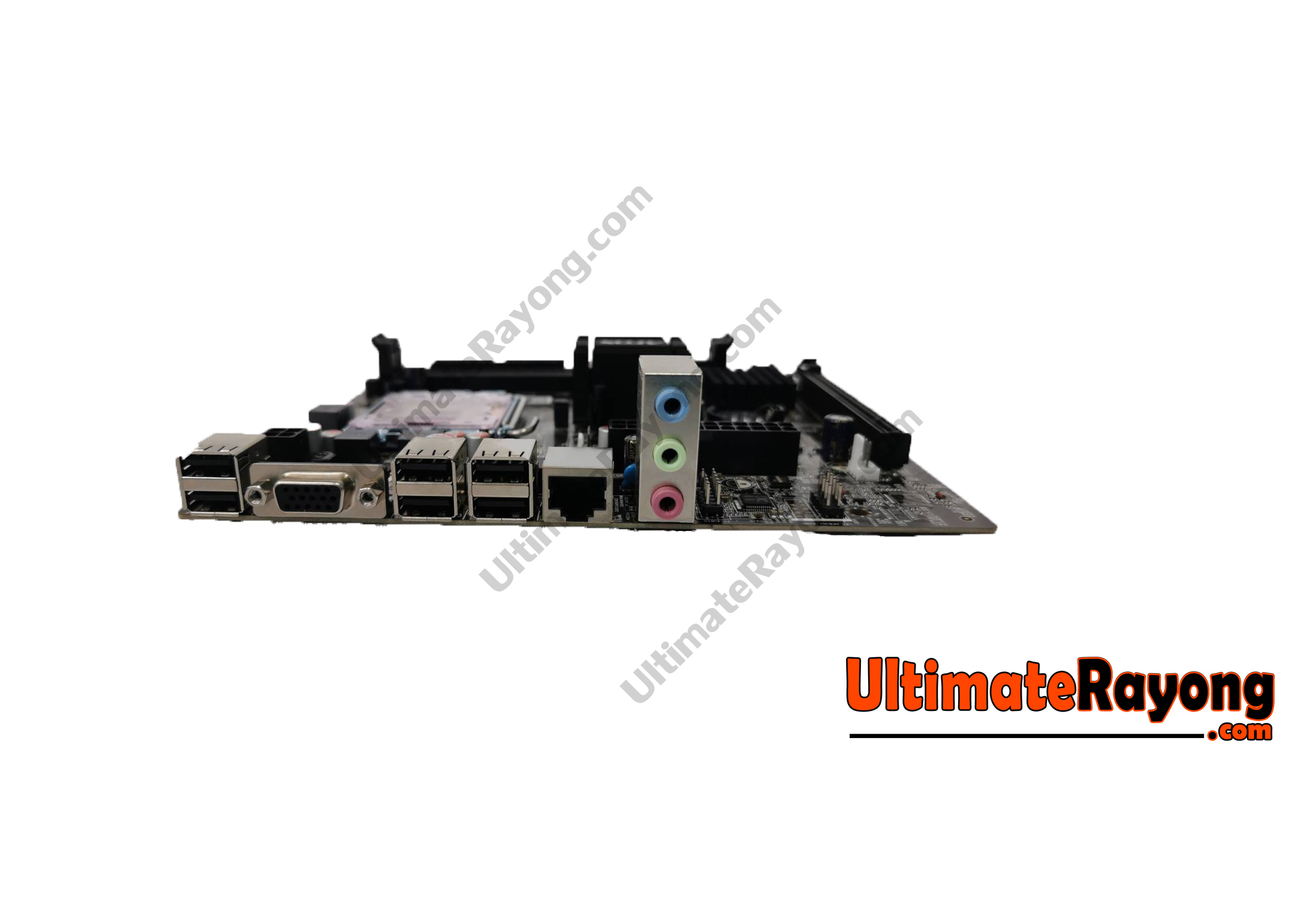

Back Panel Connectors :
1 x USB keyboard port
1 x USB mouse port
1 x VGA port
4 x USB 2.0 port
1 x LAN jack
3 x Audio jack
LAN :Realtek RTL8103E 10/100Mbps Ethernet on board
Form Factor :Micro-ATX (19 x 17cm)
Warranty :3Y
